ALARM VALVES
Integrated Groove Alarm Valve
KFI
1 / 4
1 / 4ALARM VALVES
Integrated Groove Alarm Valve

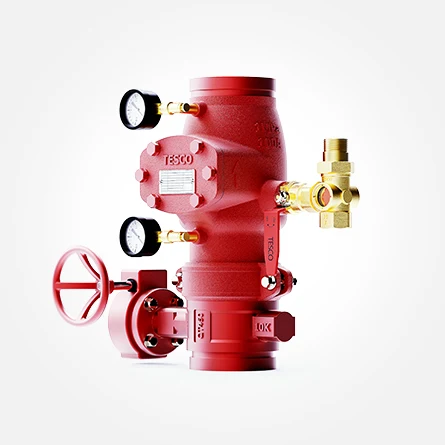

Butterfly integral groove alarm valve
KFI
- Product code
- TGF-54
- Category
- Alarm Valves
- Size
- 65A · 80A · 100A · 125A · 150A
- Working pressure
- 0.2 ~ 1.4 MPa
- End connection
- GROOVED
- Certification
- 검 18-10 형식승인
- Manufacture
- In-house (Namyangju, Korea)
Features
- A top-specification grooved butterfly valve is fastened to the inlet side with UL- and FM-listed couplings, making installation convenient and cost reduction easy.
- For residential use, a union-type sight glass replaces the test valve box, reducing installation cost and simplifying operation.
Specifications
Specifications
| ITEM | CONTENTS |
|---|---|
| 호칭경 SIZE | 65A · 80A · 100A · 125A · 150A |
| MODEL | TAL-1G |
| Fluid | 소방용수 / WATER |
| End connection | GROOVED |
| 압력손실값 | MAX. 20.7 kPa |
| 유량계수 | 80 |
| 알람스위치 DELAY TIME | 3 ~ 5 sec. |
| 알람스위치 SENSING TYPE | Approach sensor |
| 사용압력 | 0.2 ~ 1.4 MPa |
| Hydrostatic test | 2.2 MPa |
| 설치방향 | 수직 |
| 재질 BODY | GCD450 |
| 재질 TRIM | SSC13, C3771 |

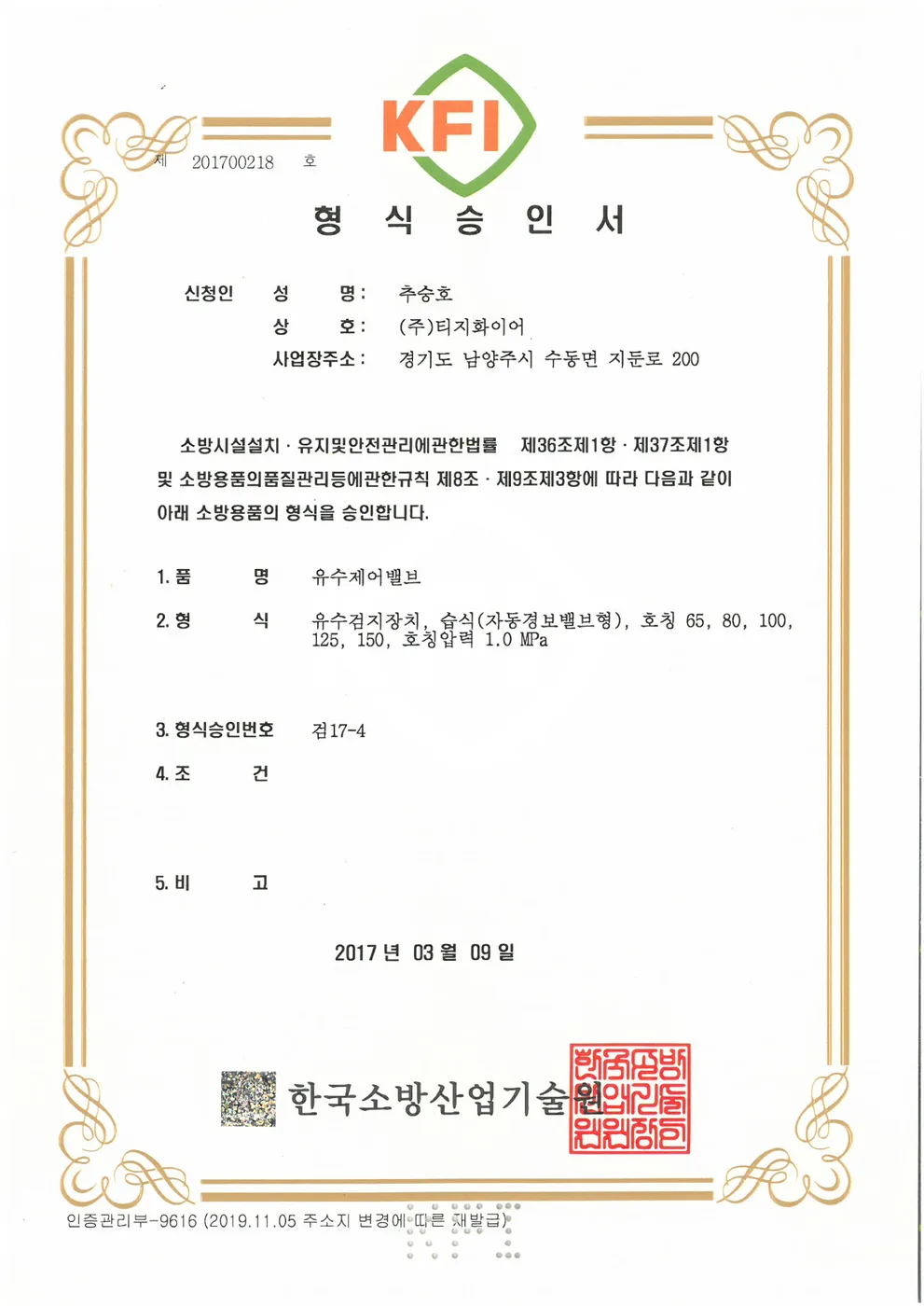

Approval drawings & certificates5 files
For original documents (type approvals, drawings, test reports), see the technical library or call us.
