ALARM VALVES

Ultralight Groove Alarm Valve

KFIUltralight Groove Alarm Valve1 / 5
ALARM VALVES

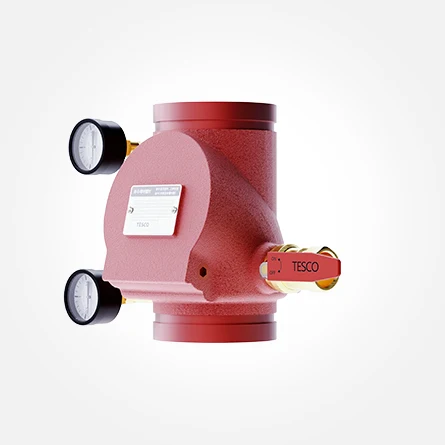

Ultralight Groove Alarm Valve

Ultralight groove type alarm valve

KFI
Product code
TGF-47
Category
Alarm Valves
Size
65A · 80A · 100A · 125A · 150A
Working pressure
0.1 ~ 1.4 MPa
End connection
GROOVED
Certification
검 18-10 / 검 20-1 / 검 20-7 / 검 21-4 형식승인
Manufacture
In-house (Namyangju, Korea)
Product enquiry 031-591-1119Enquiry

Features

  • Radically lightened body, optimized for grooved piping.
  • A contactless alarm switch eliminates false operation.
  • A full range of accessories — integrated indicating valve, over-pressure protection, sight glass — meets any site condition.
  • Ultralight and ultra-compact, cutting both installation cost and required space.

Specifications

Specifications

ITEMCONTENTS
호칭경 SIZE65A · 80A · 100A · 125A · 150A
MODELTAK-10
Fluid소방용수 / WATER
End connectionGROOVED
압력손실값MAX. 20.7 kPa
유량계수80
사용압력0.1 ~ 1.4 MPa
Hydrostatic test2.2 MPa
설치방향수직
재질 BODYGCD450
재질 TRIMSSC13, NBR
ALARM SWITCHC3771

Approval drawings & certificates8 files

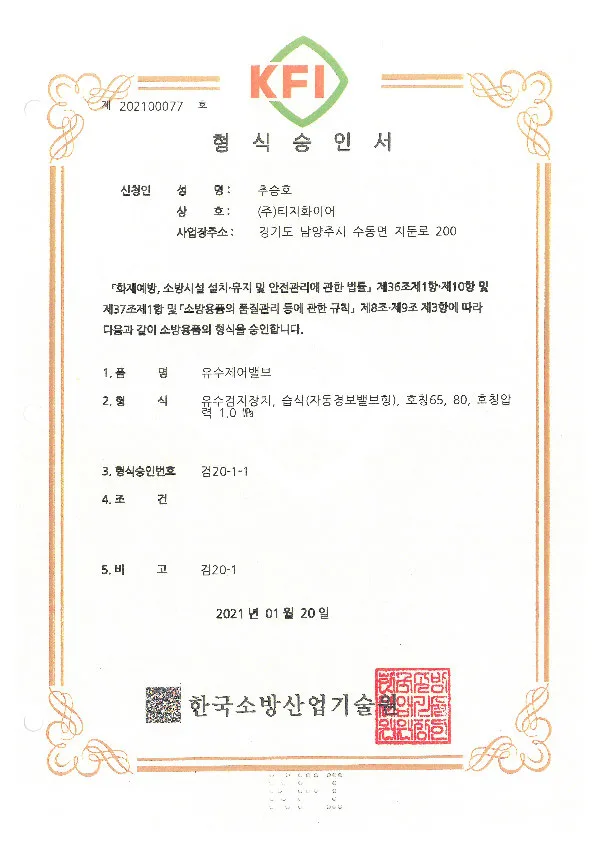

Ultralight Groove Alarm Valve Approval drawings & certificates 1
DOC 01

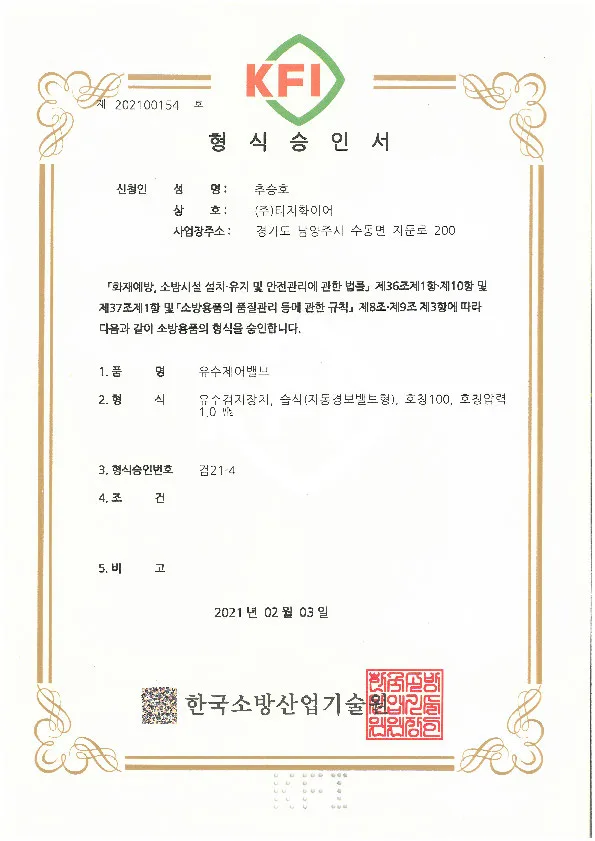

Ultralight Groove Alarm Valve Approval drawings & certificates 2
DOC 02

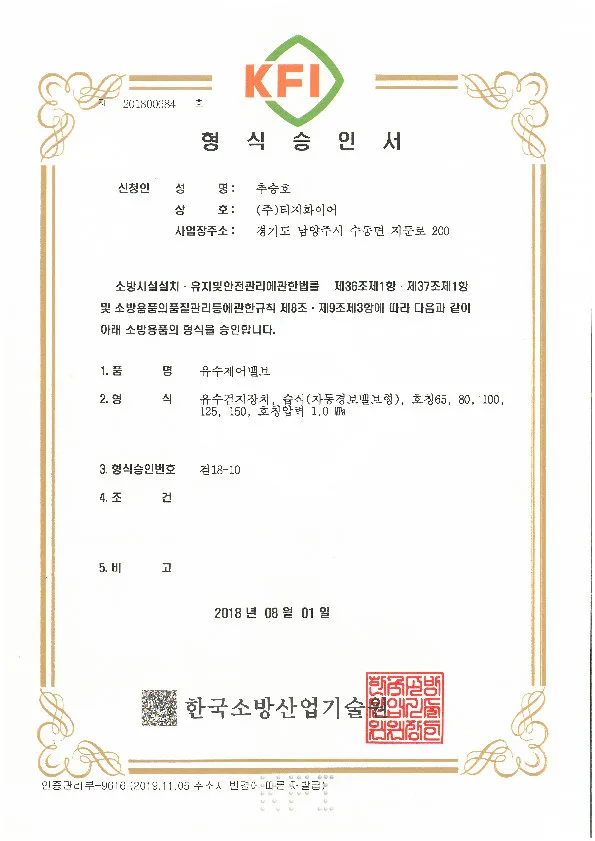

Ultralight Groove Alarm Valve Approval drawings & certificates 3
DOC 03

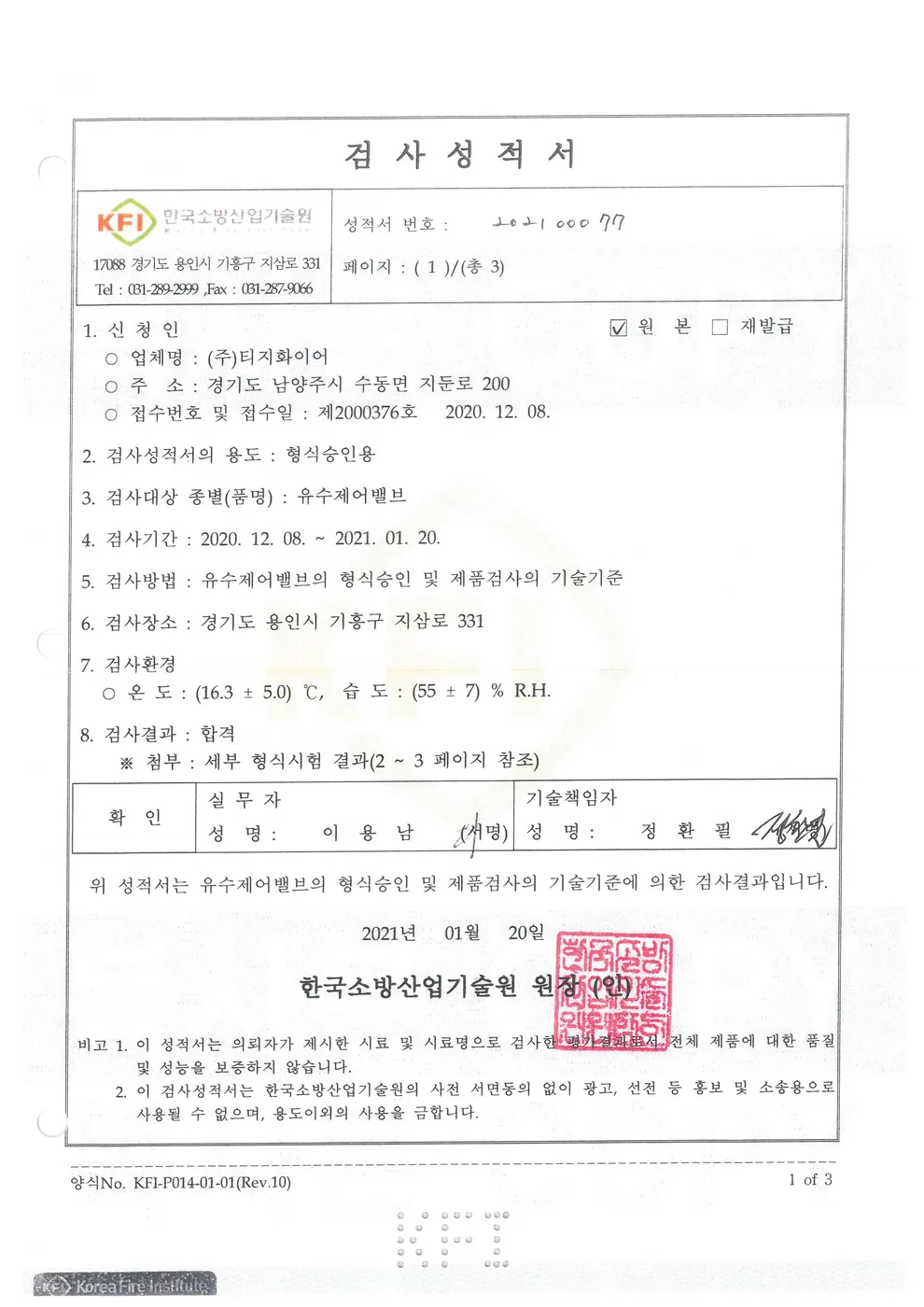

Ultralight Groove Alarm Valve Approval drawings & certificates 4
DOC 04

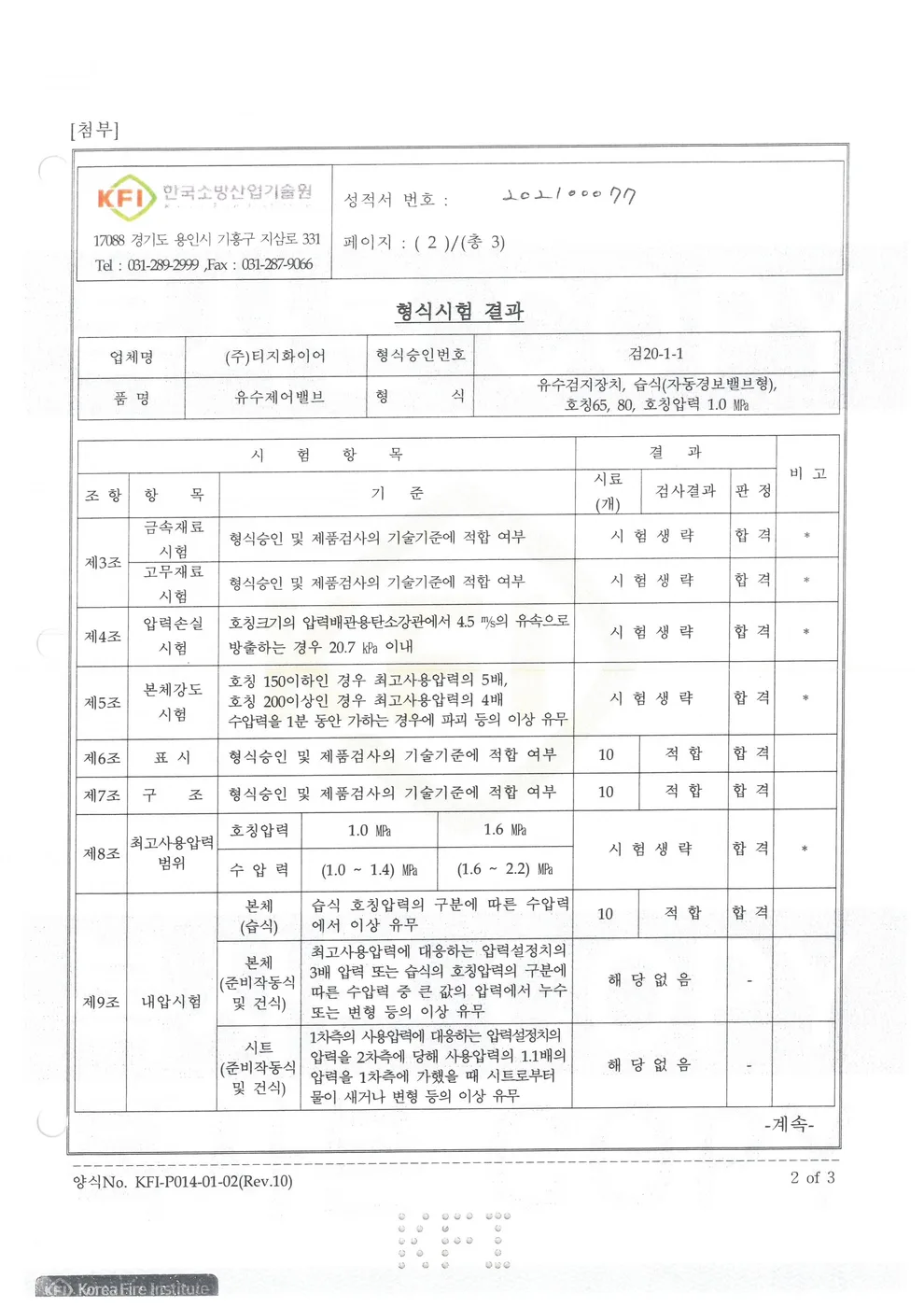

Ultralight Groove Alarm Valve Approval drawings & certificates 5
DOC 05

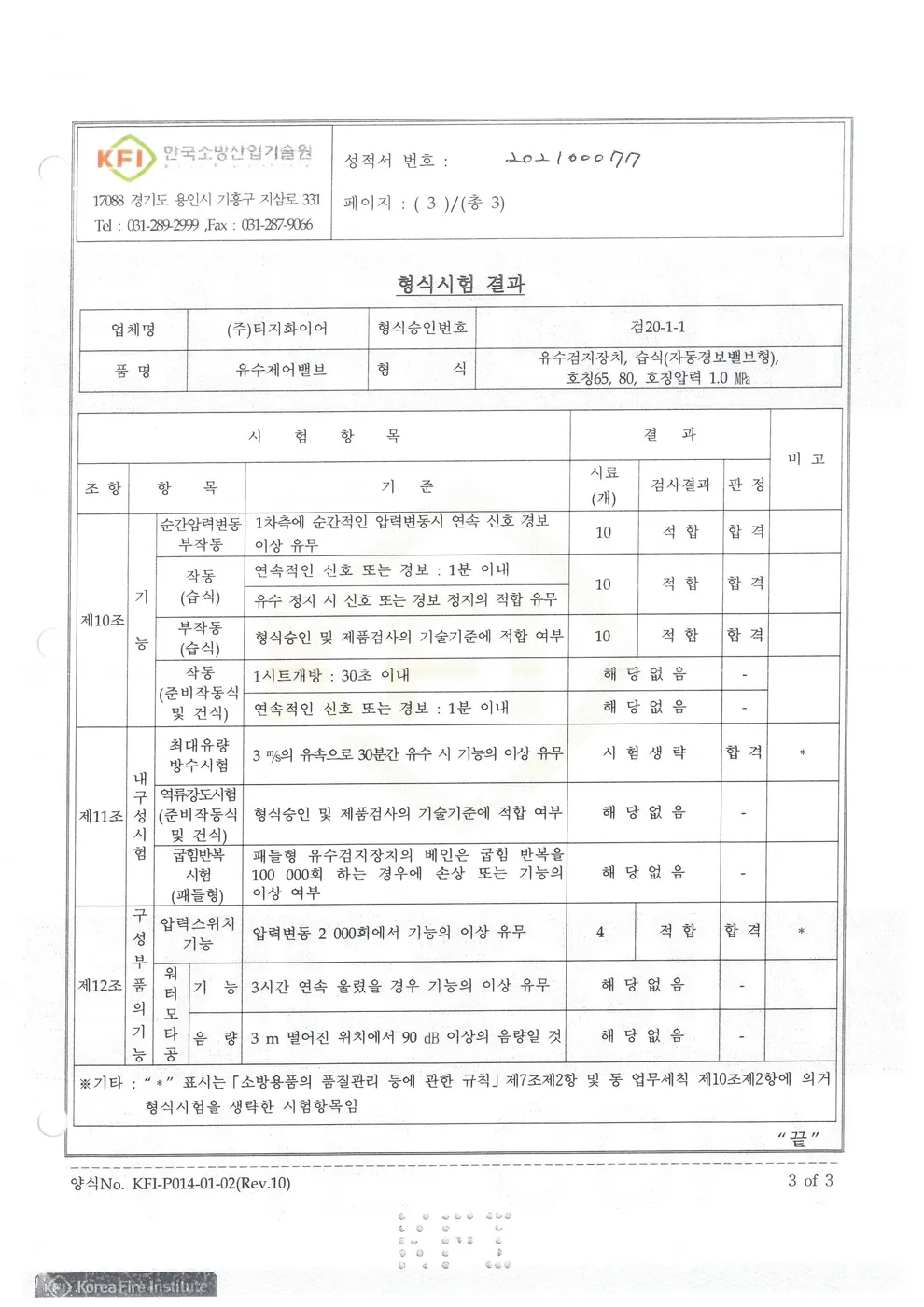

Ultralight Groove Alarm Valve Approval drawings & certificates 6
DOC 06

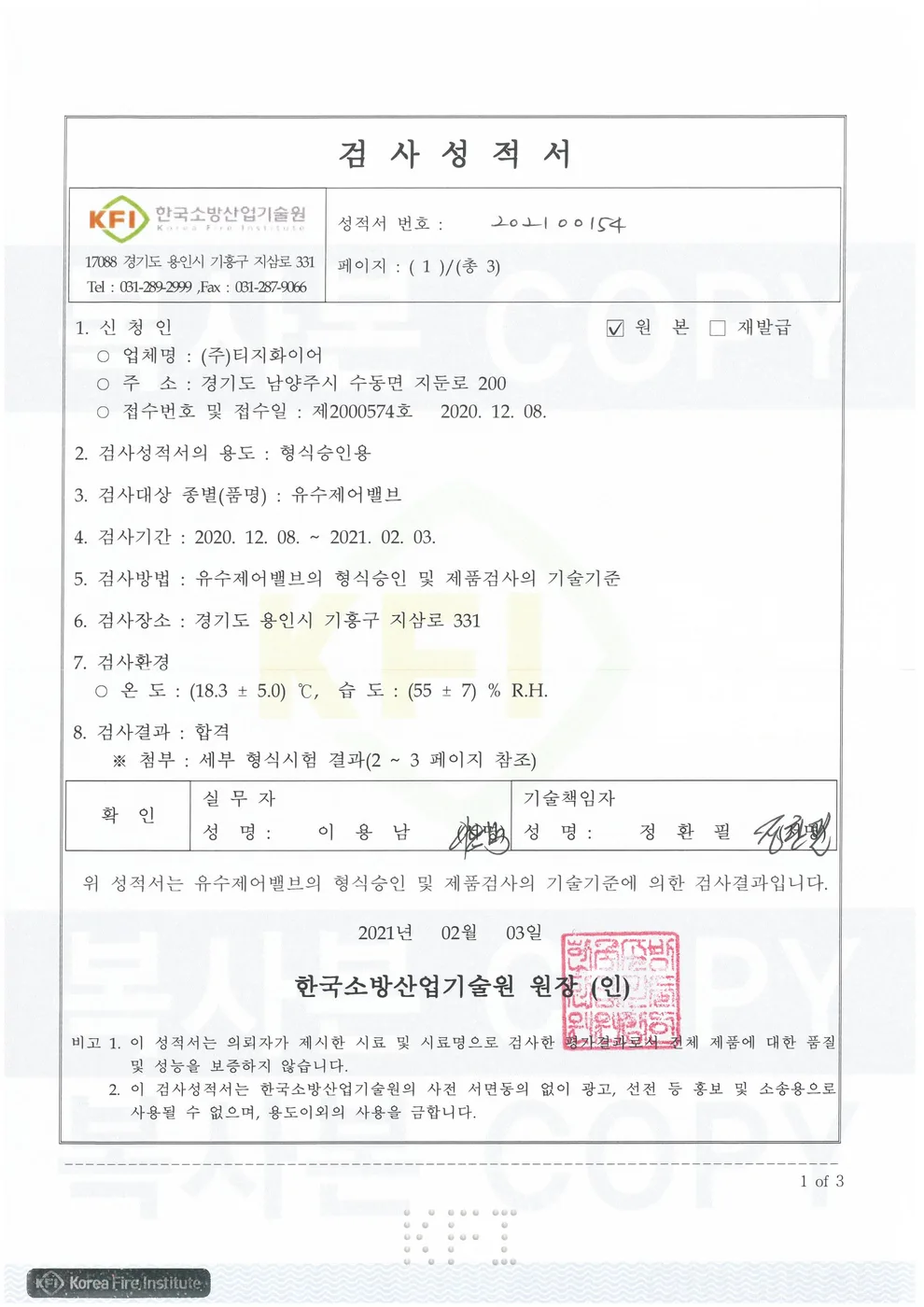

Ultralight Groove Alarm Valve Approval drawings & certificates 7
DOC 07
Ultralight Groove Alarm Valve Approval drawings & certificates 8
DOC 08

For original documents (type approvals, drawings, test reports), see the technical library or call us.

‹ Previous · Test-pipe Integrated Alarm ValveBack to familyNext · Ultralight Integrated Groove Alarm Valve ›

Product images are staged for illustration; the authoritative specification is the approval drawing current at the time of order.
