ALARM VALVES

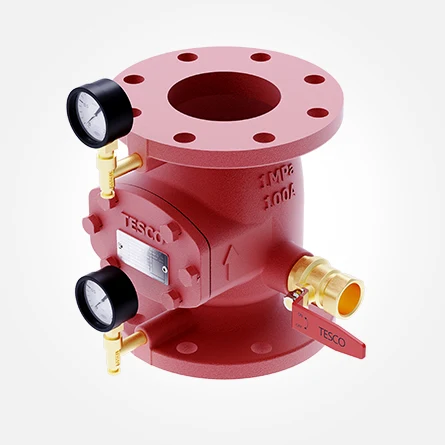

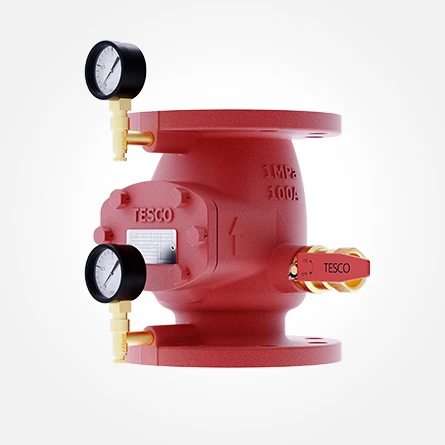

Flange Alarm Valve

KFIFlange Alarm Valve1 / 3
ALARM VALVES

Flange Alarm Valve

Flange type alarm valve

KFI
Product code
TGF-49
Category
Alarm Valves
Size
65A · 80A · 100A · 125A · 150A
Working pressure
0.1 ~ 1.4 MPa
End connection
KS 10K FLANGED
Certification
검 18-12 / 검 18-13 형식승인
Manufacture
In-house (Namyangju, Korea)
Product enquiry 031-591-1119Enquiry

Features

  • A proximity-sensor alarm switch with no mechanical contacts — no false operation, semi-permanent service life.
  • With no mechanical contacts, the switch can be used safely even in explosion-hazard areas.
  • Magnetic sensitivity is calibrated individually for each size, dramatically improving operational reliability.
  • The compact alarm switch saves space and prevents switch damage during transport and handling.
  • The precision-cast, highly rigid ductile iron body is attractive and light, greatly improving constructability.
  • A complete accessory supply chain — sight glass replacing the separate test valve, over-pressure device and more — handles any site.
  • Backed by a 3-year free warranty after installation.

Specifications

Specifications

ITEMCONTENTS
호칭경 SIZE65A · 80A · 100A · 125A · 150A
MODELTAL-10
Fluid소방용수 / WATER
End connectionKS 10K FLANGED
압력손실값MAX. 20.7 kPa
유량계수80
알람스위치 DELAY TIME3 ~ 5 sec.
알람스위치 SENSING TYPEApproach sensor
사용압력0.1 ~ 1.4 MPa
Hydrostatic test2.2 MPa
설치방향수직
재질 BODYGCD450
재질 TRIMSSC13, NBR
ALARM SWITCHC3771

Approval drawings & certificates7 files

Flange Alarm Valve Approval drawings & certificates 1
DOC 01
Flange Alarm Valve Approval drawings & certificates 2
DOC 02
Flange Alarm Valve Approval drawings & certificates 3
DOC 03
Flange Alarm Valve Approval drawings & certificates 4
DOC 04
Flange Alarm Valve Approval drawings & certificates 5
DOC 05
Flange Alarm Valve Approval drawings & certificates 6
DOC 06

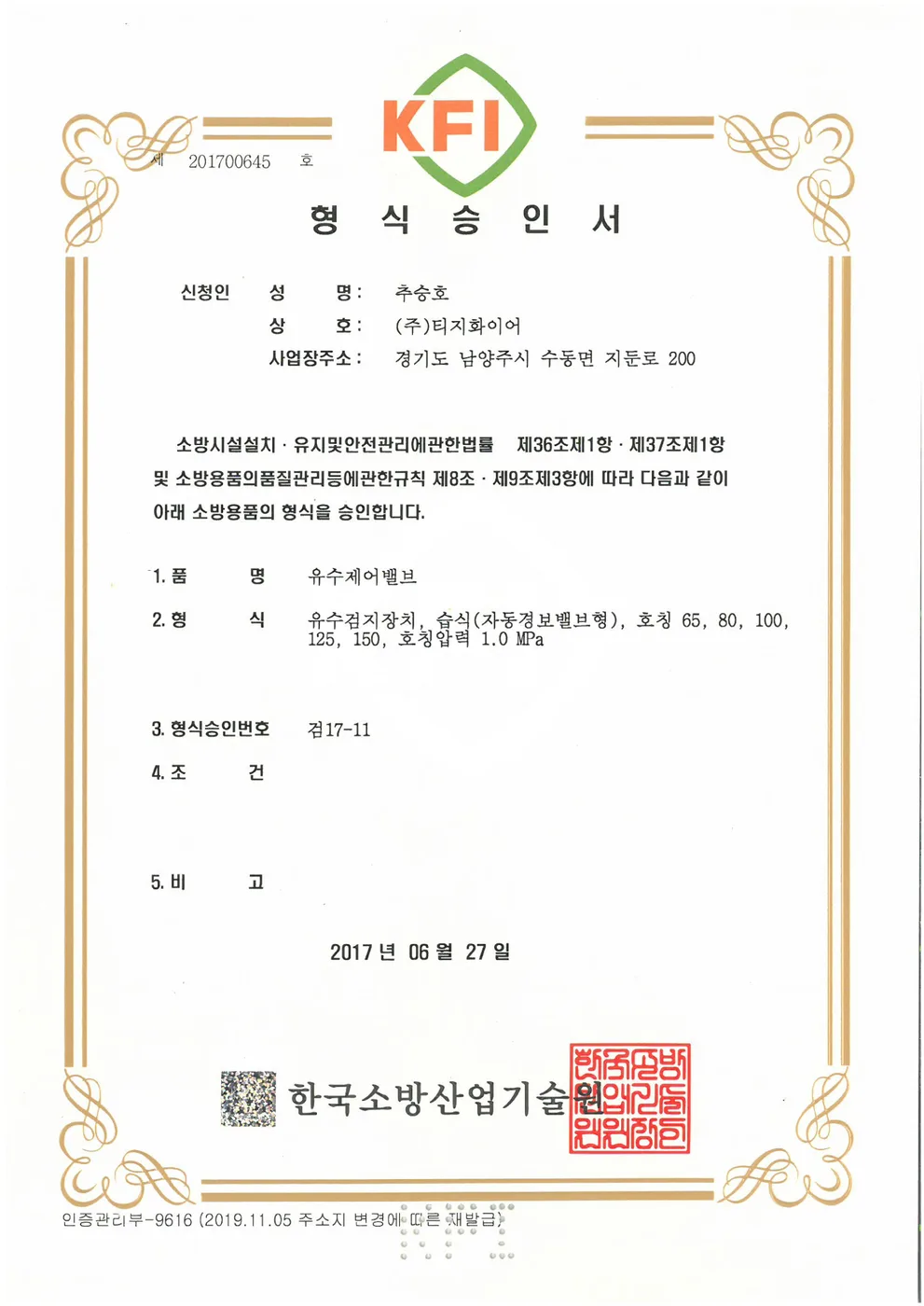

Flange Alarm Valve Approval drawings & certificates 7
DOC 07

For original documents (type approvals, drawings, test reports), see the technical library or call us.

‹ Previous · Integrated Groove Alarm ValveBack to familyNext · Integrated Flange Alarm Valve ›

Product images are staged for illustration; the authoritative specification is the approval drawing current at the time of order.
