ALARM VALVES
Ultralight Integrated Groove Alarm Valve
KFI
1 / 5
1 / 5ALARM VALVES

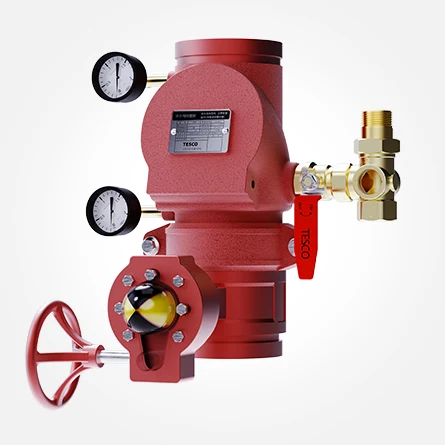

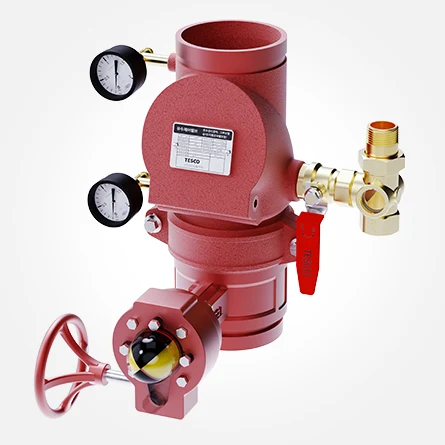

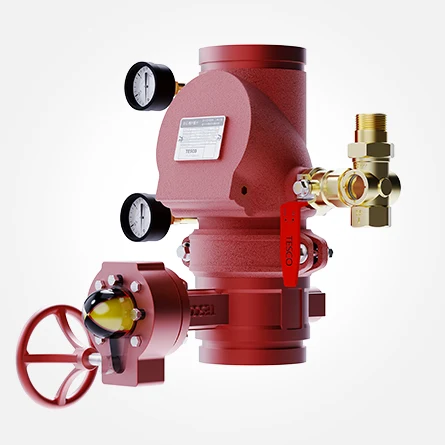

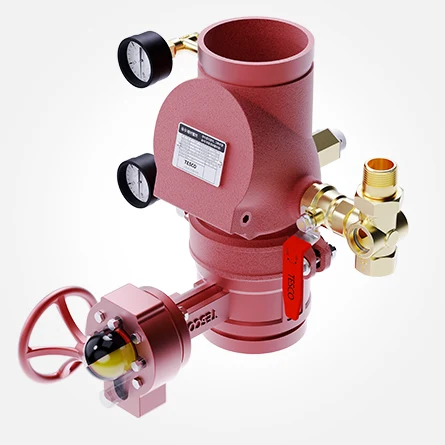

Ultralight Integrated Groove Alarm Valve
Ultra lightweight butterfly integral groove alarm valve
KFI
- Product code
- TGF-53
- Category
- Alarm Valves
- Size
- 65A · 80A · 100A · 125A · 150A
- Working pressure
- 0.1 ~ 1.4 MPa
- End connection
- GROOVED
- Certification
- 검 18-10 / 검 20-1 / 검 20-7 / 검 21-4 형식승인
- Manufacture
- In-house (Namyangju, Korea)
Features
- Radically lightened body, optimized for grooved piping.
- A contactless alarm switch eliminates false operation.
- Integrated indicating valve, over-pressure protection and sight glass cover any site condition.
- Ultralight and ultra-compact, cutting both installation cost and required space.
Specifications
Specifications
| ITEM | CONTENTS |
|---|---|
| 호칭경 SIZE | 65A · 80A · 100A · 125A · 150A |
| MODEL | TAK-10 |
| Fluid | 소방용수 / WATER |
| End connection | GROOVED |
| 압력손실값 | MAX. 20.7 kPa |
| 유량계수 | 80 |
| 사용압력 | 0.1 ~ 1.4 MPa |
| Hydrostatic test | 2.2 MPa |
| 설치방향 | 수직 |
| 재질 BODY | GCD450 |
| 재질 TRIM | SSC13, NBR |
| ALARM SWITCH | C3771 |
Approval drawings & certificates8 files
For original documents (type approvals, drawings, test reports), see the technical library or call us.
Product images are staged for illustration; the authoritative specification is the approval drawing current at the time of order.
