1 / 5WATER SPRAY HEADS

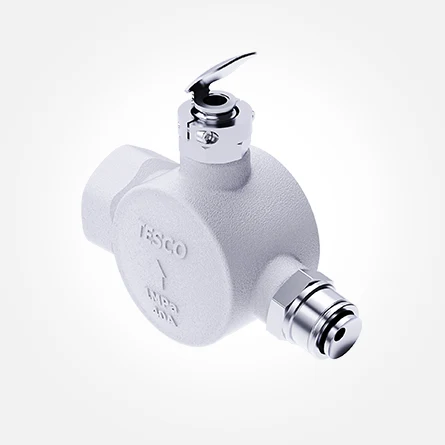

Tunnel Water Spray Head
Water spray head for tunnel disaster prevention
KFIFIRST
- Product code
- TGF-58
- Category
- Fire Suppression Heads
- Size
- 40A
- End connection
- 나사식 또는 그루브 조인트
- Fluid
- 소방용수 / WATER
- Certification
- 물헤 18-12 / 물헤 21-1,2,4 성능인증
- Manufacture
- In-house (Namyangju, Korea)
삼척 실화재시험센터 소화시험 및 한국도로공사 터널시험장 현장시험 통과
Features
- A tunnel-dedicated spray head combining deflector-type and swirl-type nozzles on a rigid body to form a powerful water curtain across the entire protected area.
- The deflector nozzle covers long range and the swirl nozzle short range; the two are assembled at an optimal angle for maximum performance.
- An intake volume of over 0.5 litres maximizes continuous discharge capability.
- Pipe connections are available in threaded or grooved-joint form for convenient installation.
- Korea's first head to have its performance verified through fire tests at the Samcheok Live Fire Test Center and field tests at the Korea Expressway Corporation tunnel test site.
Specifications
Specifications
| ITEM | CONTENTS |
|---|---|
| 호칭경 SIZE | 40A |
| Fluid | 소방용수 / WATER |
| End connection | 나사식 또는 그루브 조인트 |
| Material | 내식 · 내진 사양 |

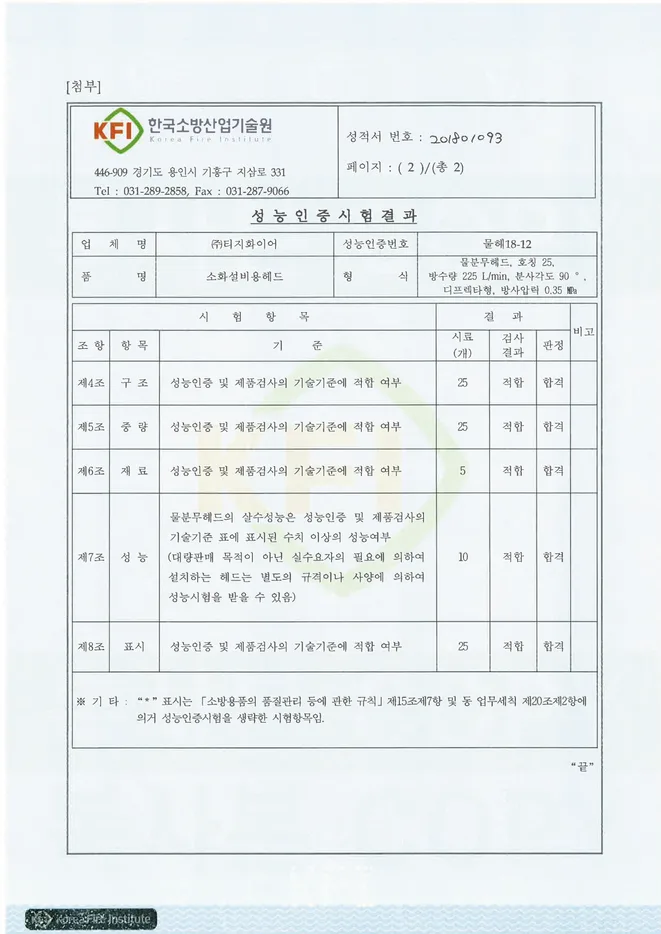

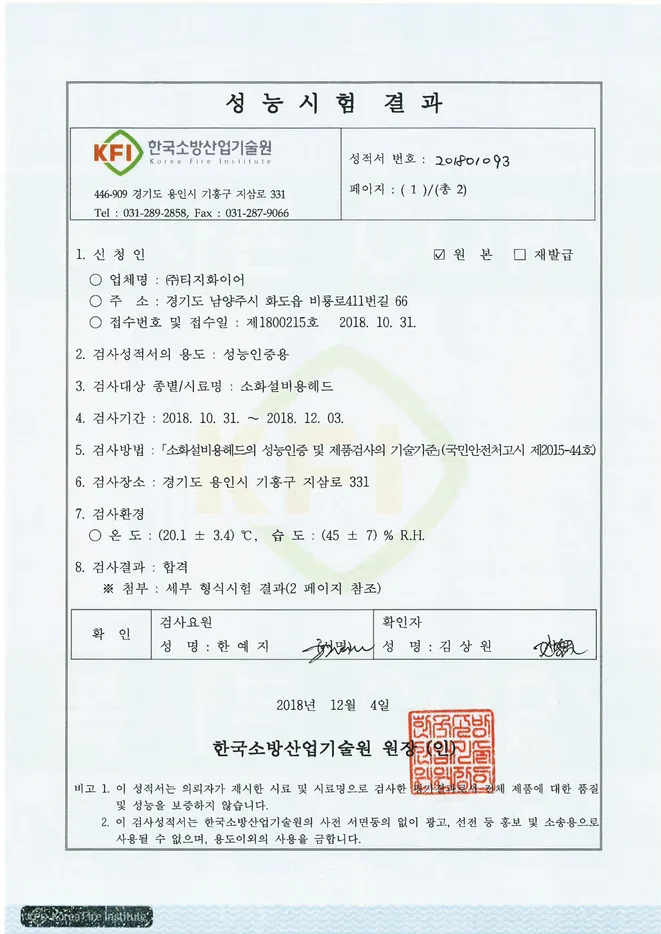

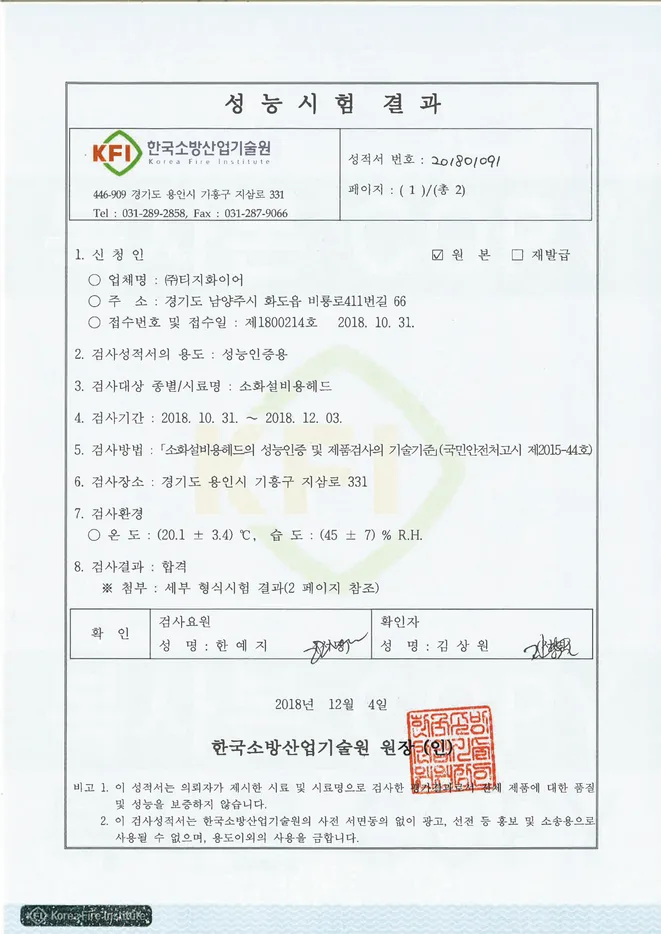

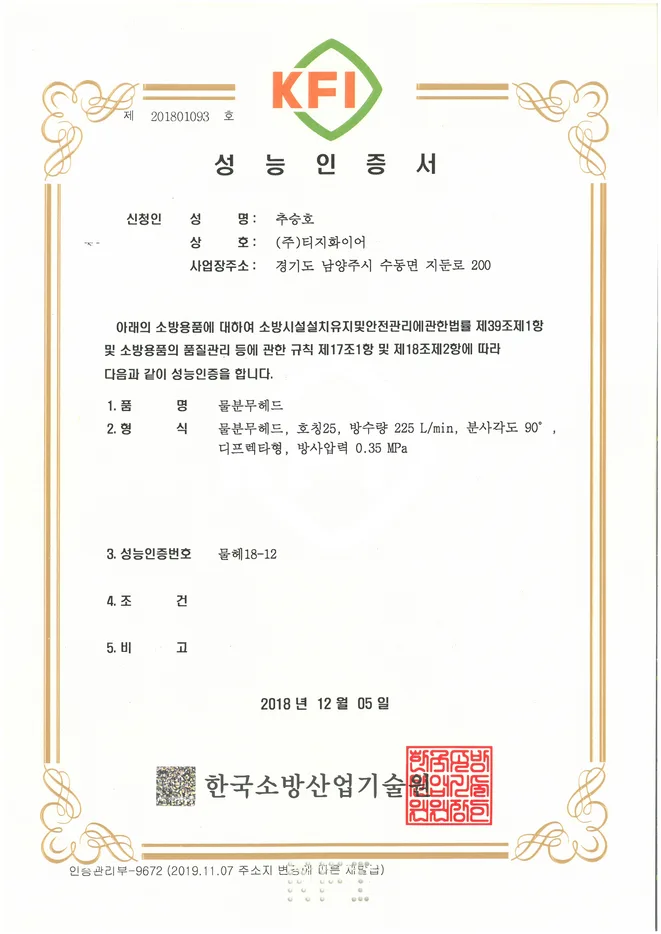

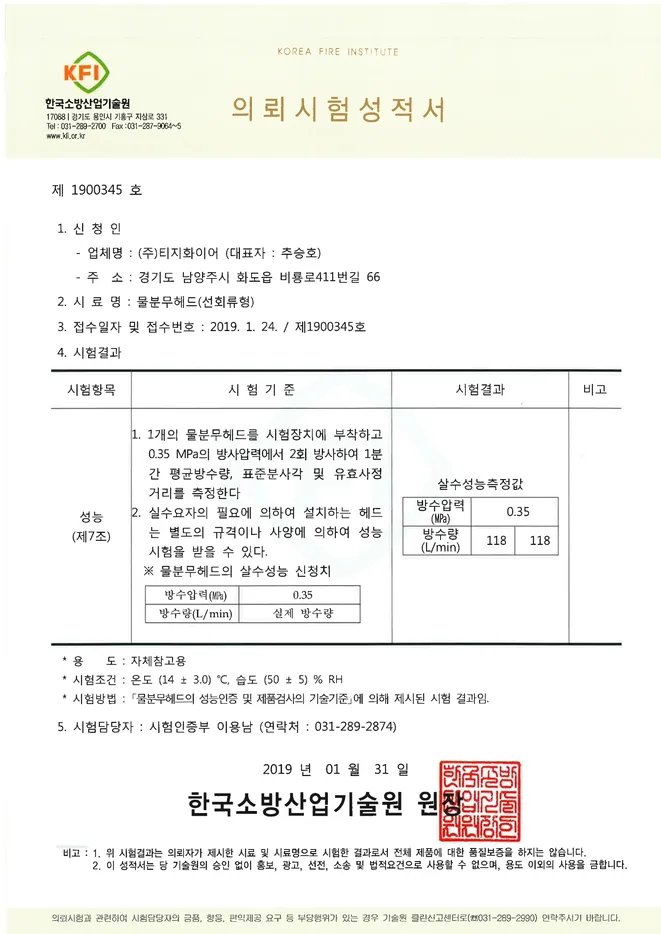

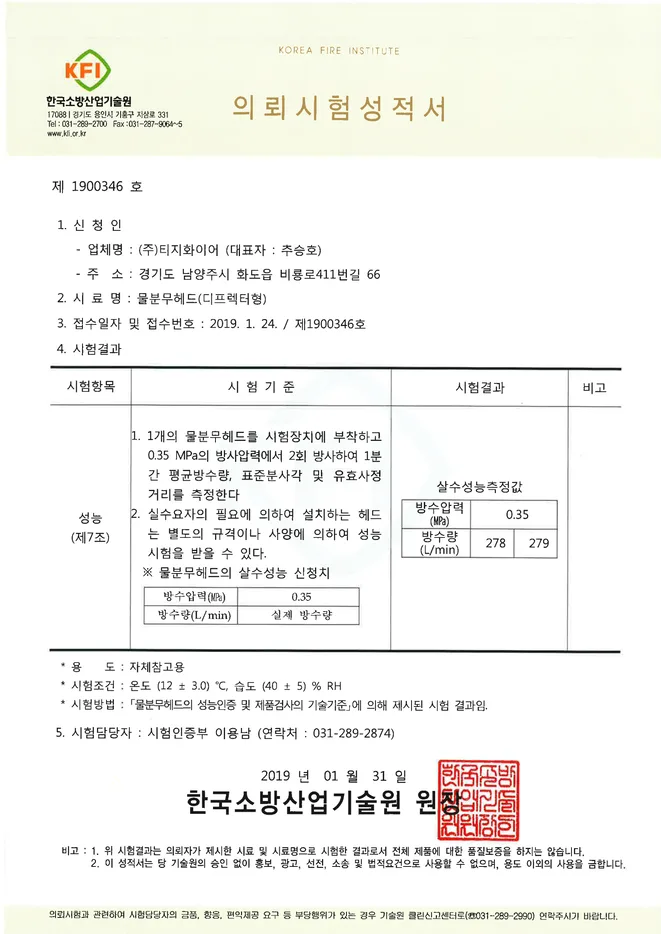

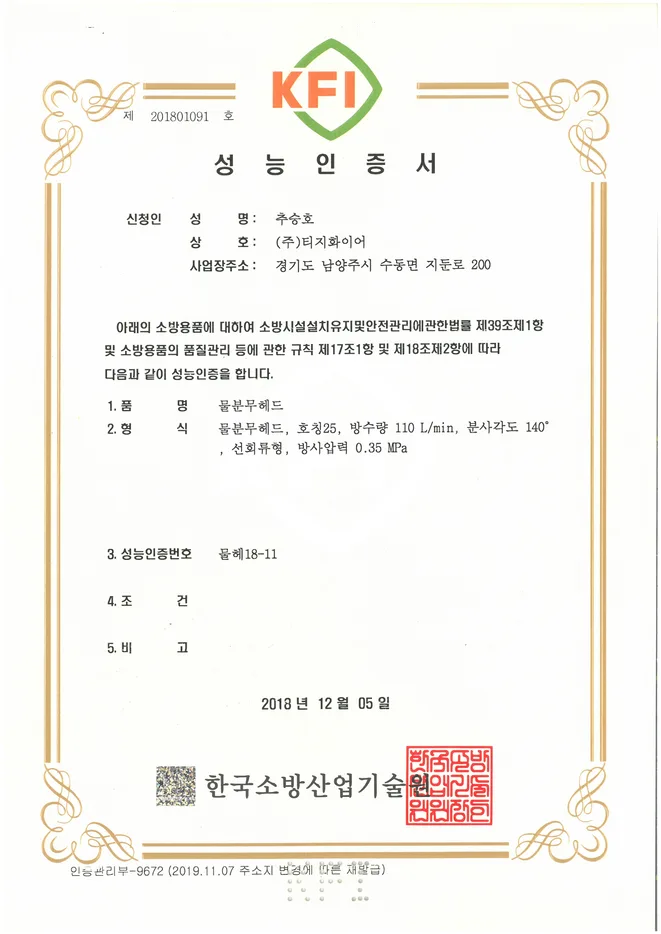

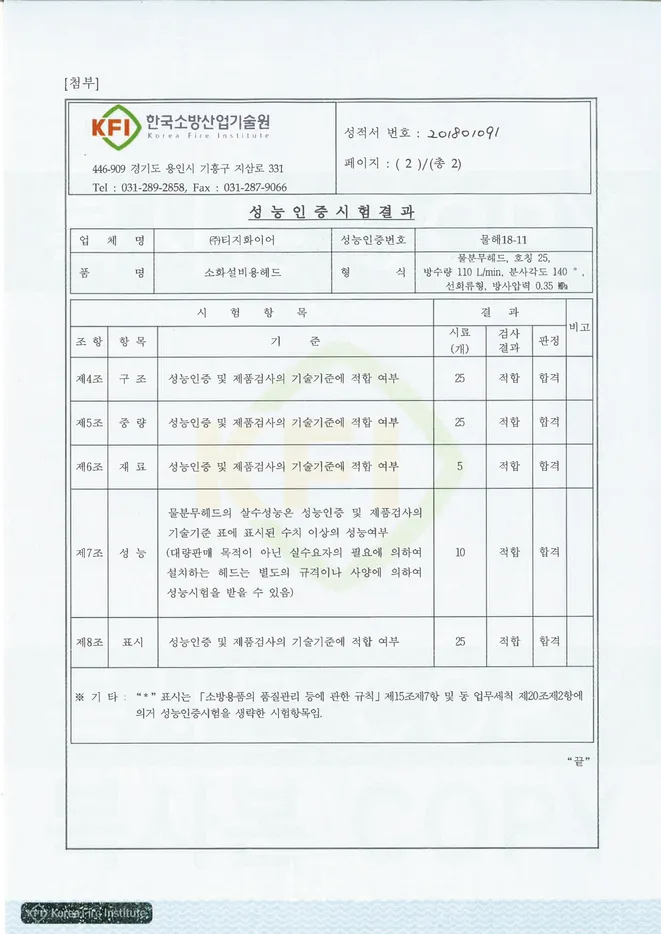

Approval drawings & certificates8 files
For original documents (type approvals, drawings, test reports), see the technical library or call us.
Product images are staged for illustration; the authoritative specification is the approval drawing current at the time of order.
