WATER SPRAY HEADS

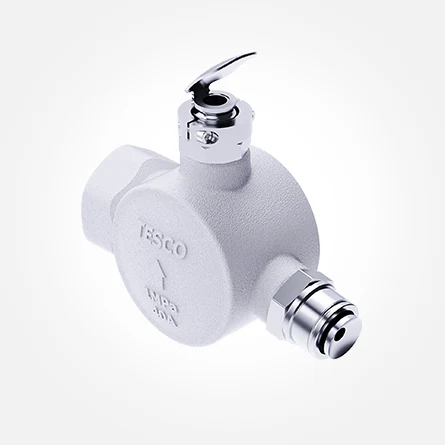

Swirl Water Spray Head

KFISwirl Water Spray Head1 / 5
WATER SPRAY HEADS

Swirl Water Spray Head

Cornering type water spray head

KFI
Product code
TGF-59
Size
25A
End connection
나사식 또는 그루브 조인트
Fluid
소방용수 / WATER
Certification
물헤 18-11 / 물헤 21-3,5 성능인증
Manufacture
In-house (Namyangju, Korea)
Product enquiry 031-591-1119Enquiry

Features

  • The double-coupled spray nozzle creates a strong swirl flow that blocks the entire protected area with a water curtain.
  • Spray angle and flow rate are supplied to specifications optimized for site conditions, adapting actively to any fire-protection system.
  • Material, vibration resistance and corrosion resistance are guaranteed for long-term exposure to harsh conditions.

Specifications

Specifications

ITEMCONTENTS
호칭경 SIZE25A
Fluid소방용수 / WATER
End connection나사식 또는 그루브 조인트
Material내식 · 내진 사양

Approval drawings & certificates5 files

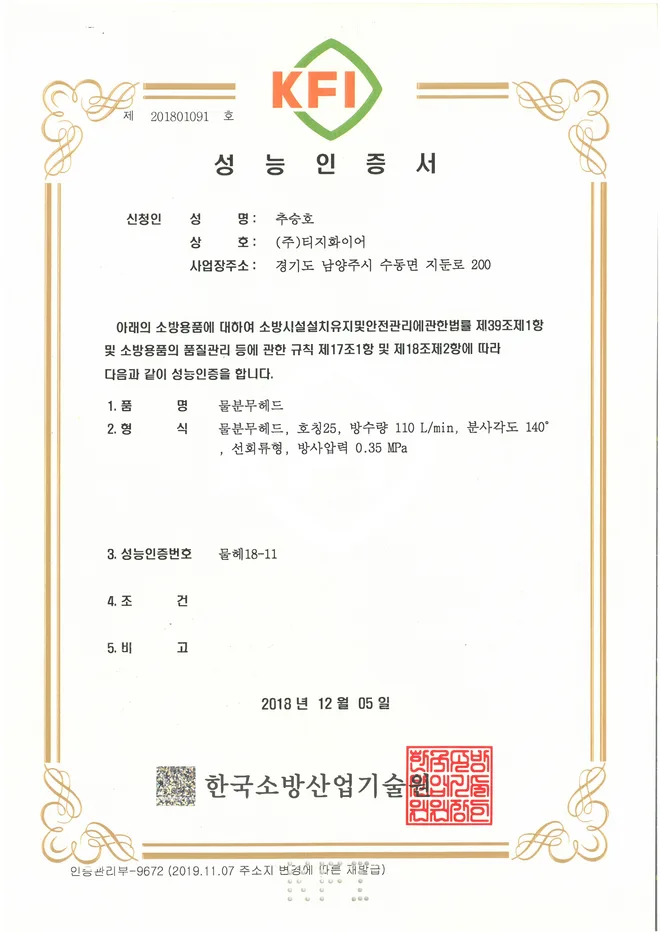

Swirl Water Spray Head Approval drawings & certificates 1
DOC 01

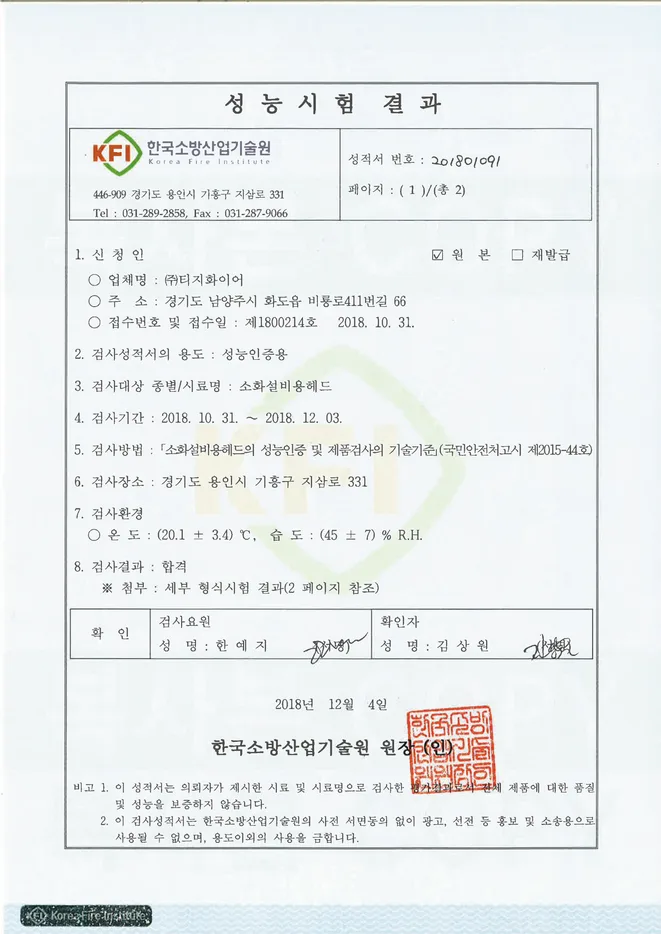

Swirl Water Spray Head Approval drawings & certificates 2
DOC 02

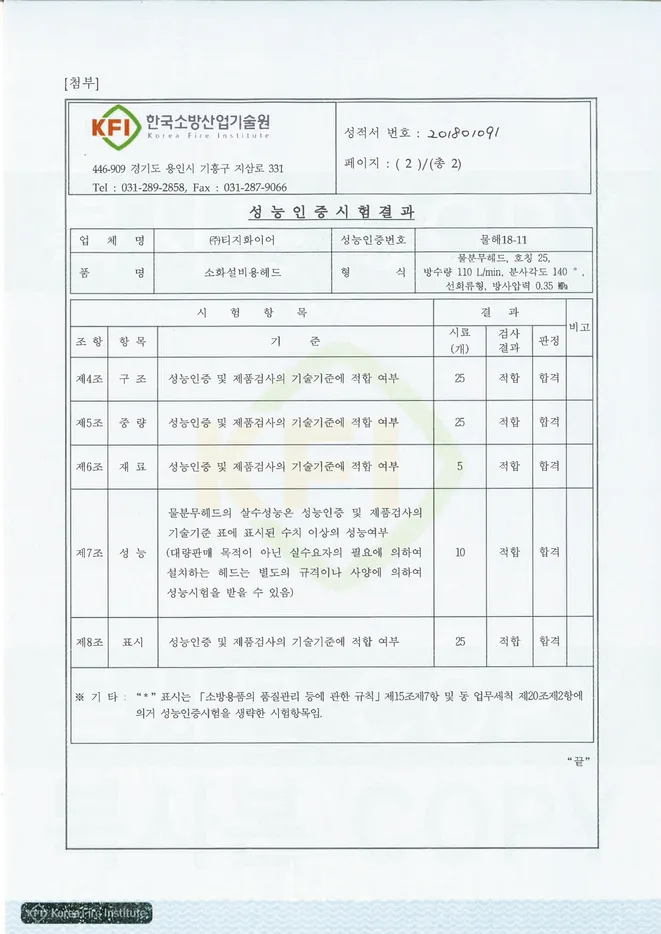

Swirl Water Spray Head Approval drawings & certificates 3
DOC 03

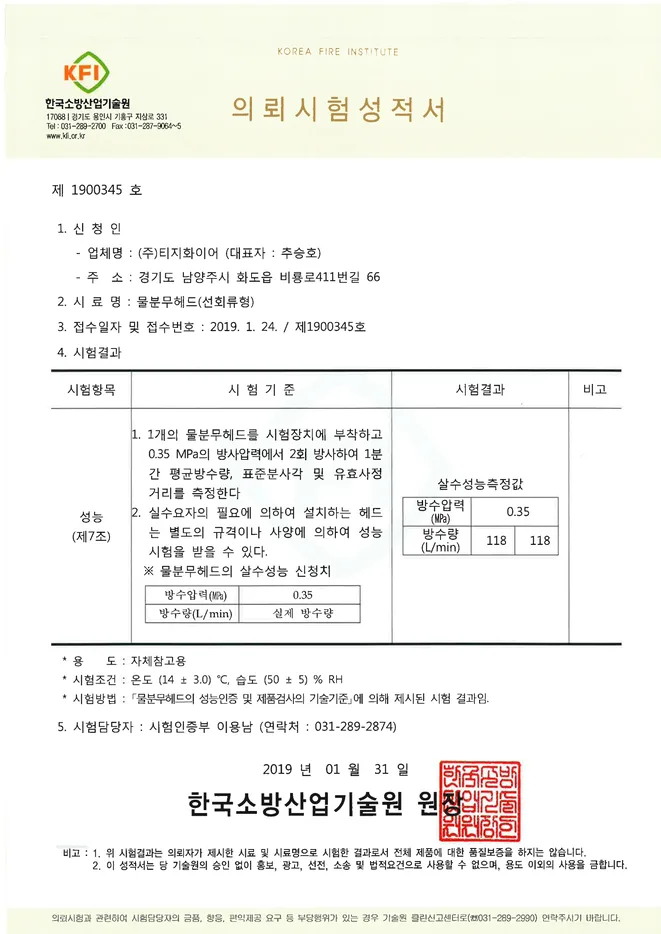

Swirl Water Spray Head Approval drawings & certificates 4
DOC 04

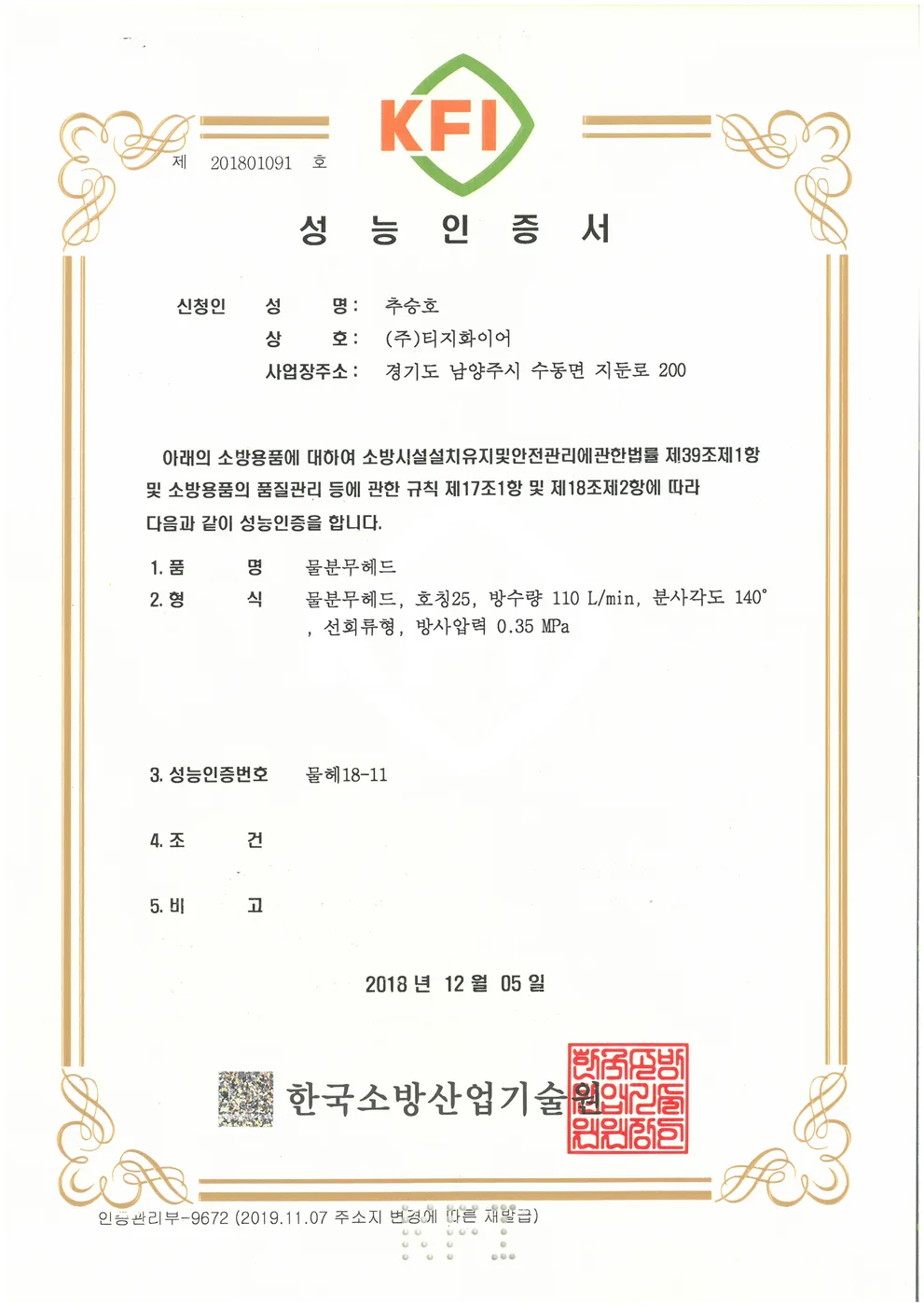

Swirl Water Spray Head Approval drawings & certificates 5
DOC 05

For original documents (type approvals, drawings, test reports), see the technical library or call us.
