INDICATING VALVES
Flange Gate Valve
KFI
1 / 5
1 / 5INDICATING VALVES

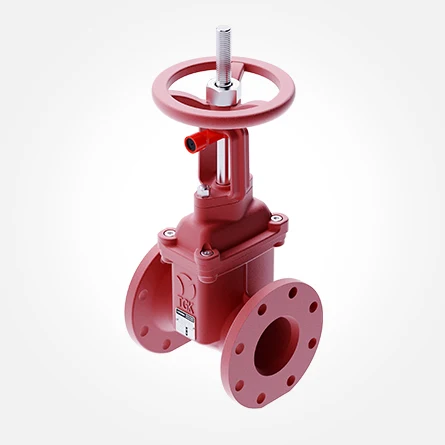

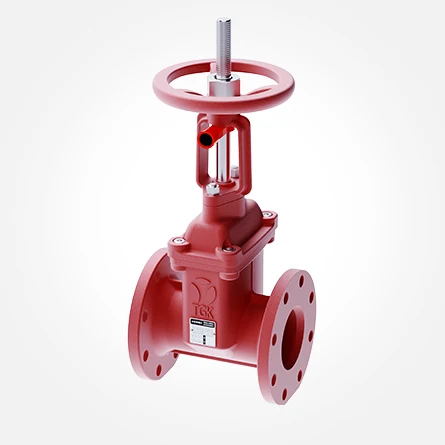

Flange Gate Valve
Flange type gate valve
KFI
- Product code
- TGF-82
- Category
- Indicating Valves
- Size
- 65A · 80A · 100A · 125A · 150A
- Working pressure
- 1.0 MPa
- Fluid
- 소방용수 / WATER
- Certification
- 소방산업기술원 성능인증
- Manufacture
- In-house (Namyangju, Korea)
Features
- Nationally certified (performance certification by the Korea Fire Institute).
- The semi-lug form connects without a separate spool piece, reducing installation cost.
- It can be separated from the fire-protection valve individually for convenient maintenance; threaded guide holes make connection easy.
- The actuator and tamper switch are integrated, saving space and giving outstanding constructability.
- High-strength ductile iron and water-resistant rubber prevent damage or leakage over long service.
- Warranted against defects for 3 years after installation.
Specifications
Specifications
| ITEM | CONTENTS |
|---|---|
| 호칭경 SIZE | 65A · 80A · 100A · 125A · 150A |
| Fluid | 소방용수 / WATER |
| 사용압력 | 1.0 MPa |
| 재질 BODY | GCD450 덕타일 주물 |
| 시트 | 내수성 고무 |
| 스위치 | TAMPER S/W 일체형 |
| 보증 | 설치 후 3년 |

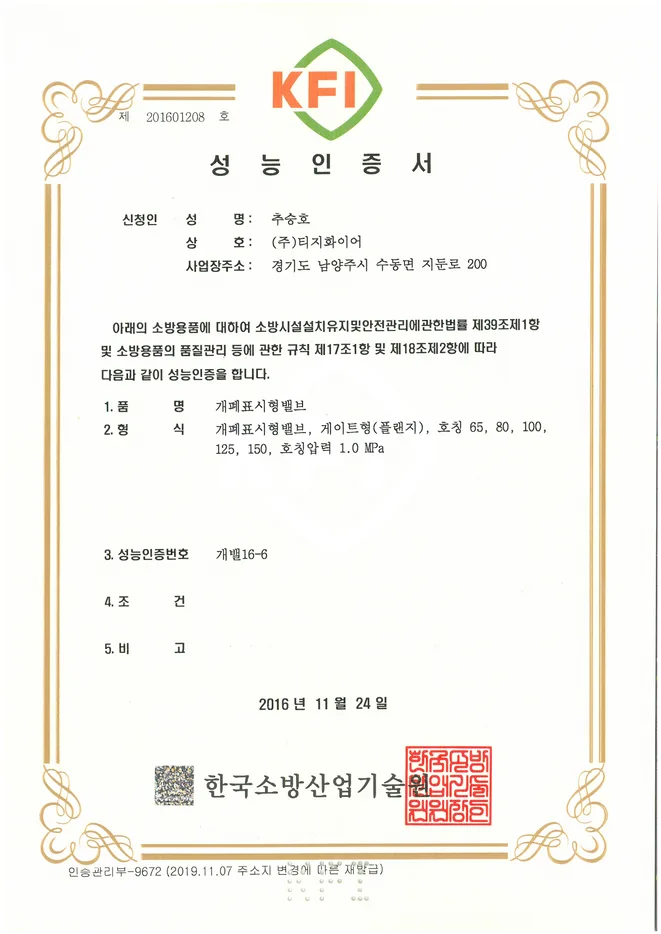

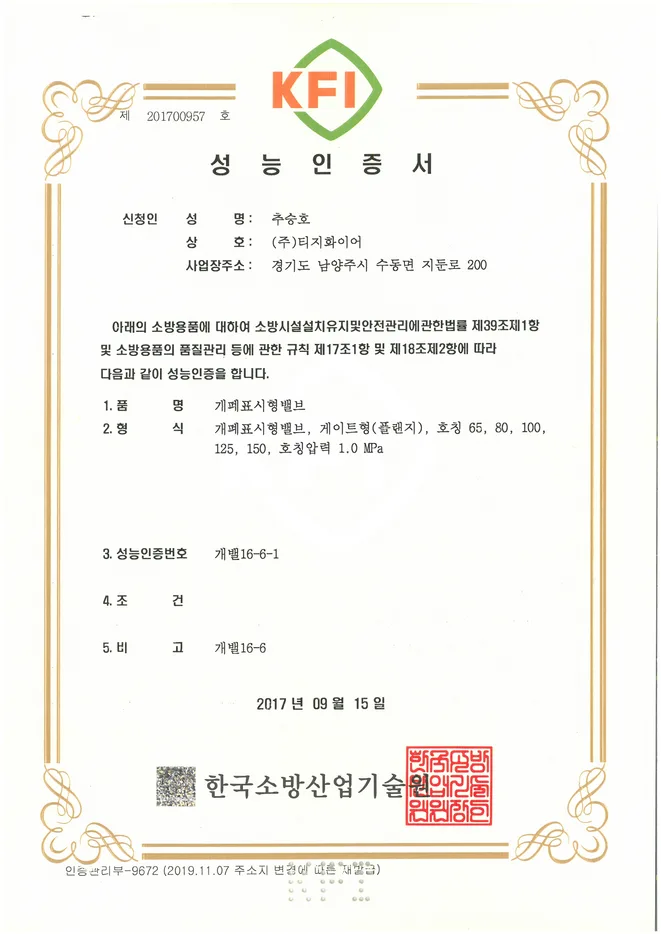

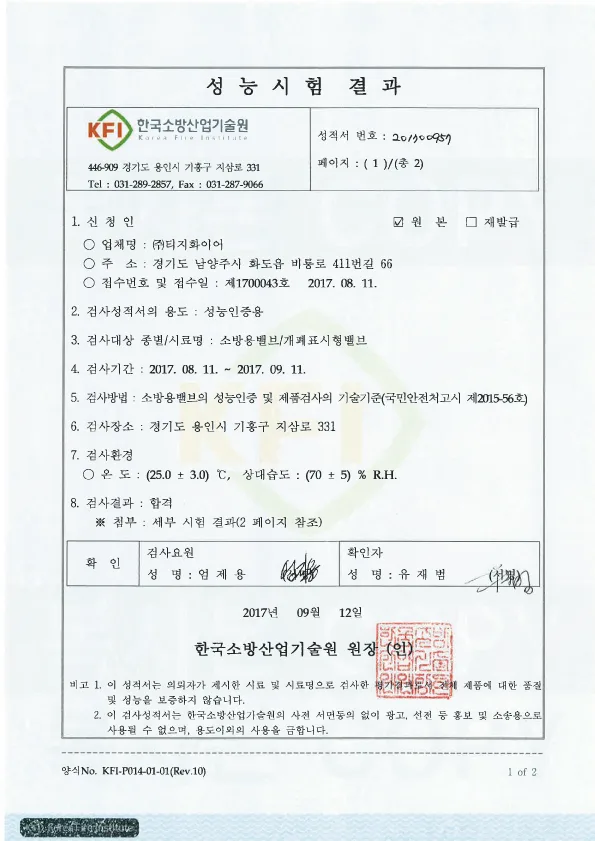

Approval drawings & certificates3 files
For original documents (type approvals, drawings, test reports), see the technical library or call us.
Product images are staged for illustration; the authoritative specification is the approval drawing current at the time of order.
